Technical Support

This guide shows low-level communication examples for technical support engineers using the FlexConnect API.

Preparations

• Launch the development client as described in the FlexConnect API User Guide — First Steps.
• Navigate to http://localhost:8080/ui.

Field Definitions

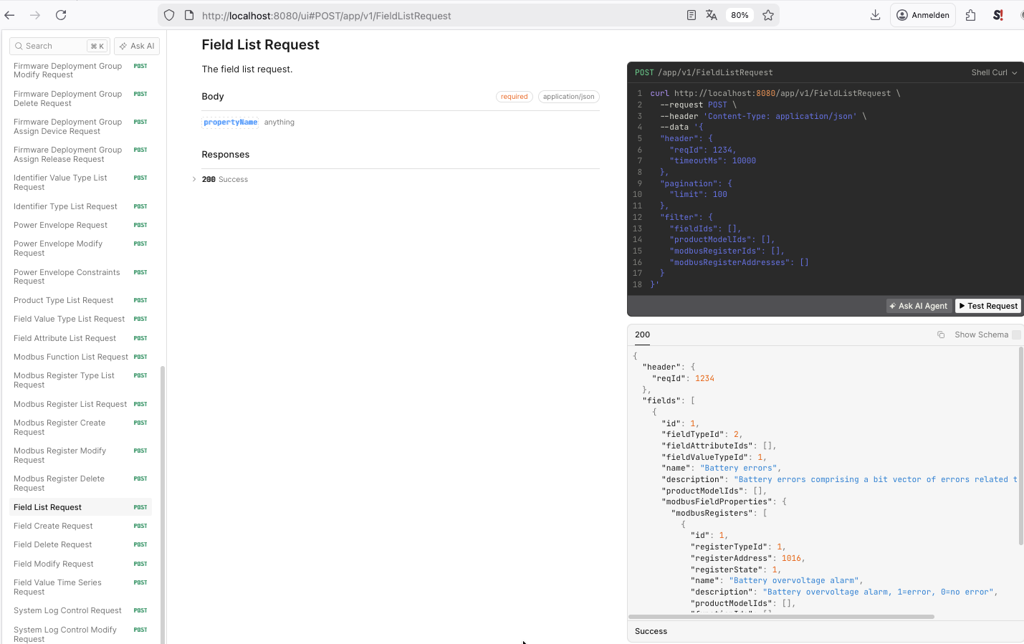

Field List Request

List the field definitions associated with your product.

1. Select the documentation for Field List Request in the left pane of the page.
2. Click Test Request on the right pane where the documentation shows the request.
3. Click Send.
4. The response body contains all field definitions associated with your product.

TIP

Filter the list by the Modbus register addresses you are interested in.

System Field Logging

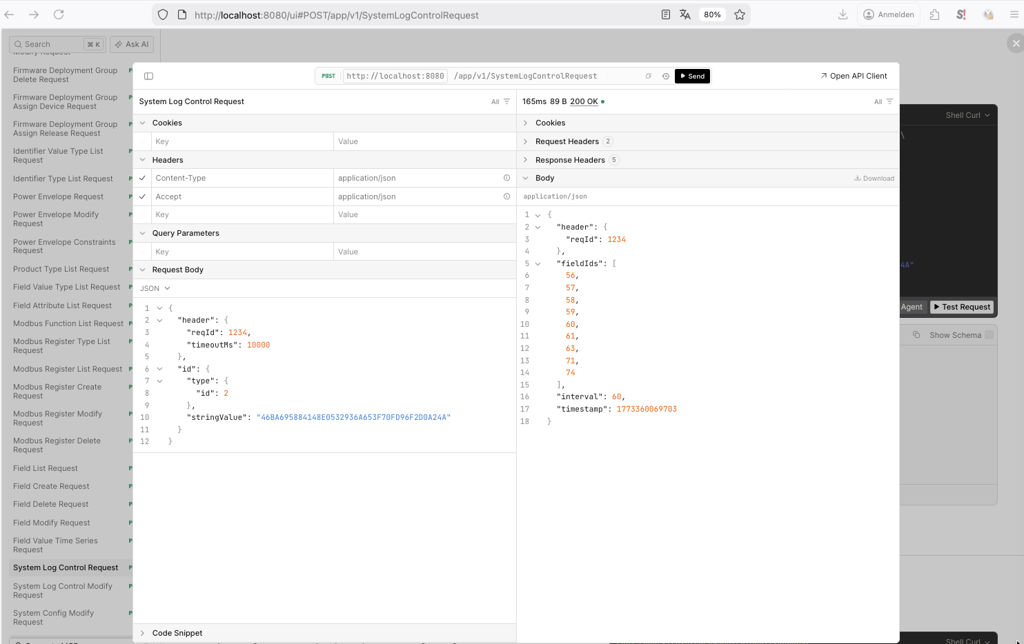

System Log Control Request

Show the current system field log configuration of a device.

1. Select the documentation for System Log Control Request in the left pane of the page.
2. Click Test Request on the right pane where the documentation shows the request.
3. Specify the SKI identifier in the stringValue of the id attribute in the request.
4. Click Send. The response body contains:

• The field IDs for which values are logged.
• The interval (in seconds) at which they are logged.
• The point in time from which they are logged, given by timestamp (milliseconds since epoch).

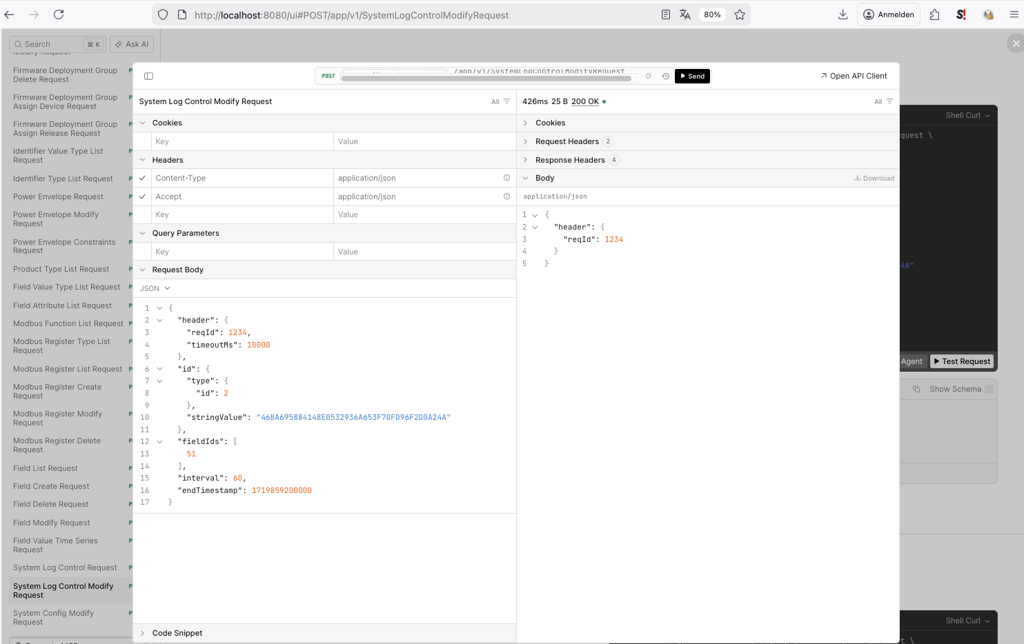

System Log Control Modify Request

Change the logging configuration for a device.

1. Select the documentation for System Log Control Modify Request in the left pane of the page.
2. Click Test Request on the right pane where the documentation shows the request.
3. Specify the following:
   • SKI identifier in the stringValue of the id attribute in the request.
   • Field IDs of the fields to be obtained, in the fieldIds attribute.
   • Interval in seconds, in the interval attribute.
   • endTimestamp in milliseconds, indicating when logging is supposed to be stopped.

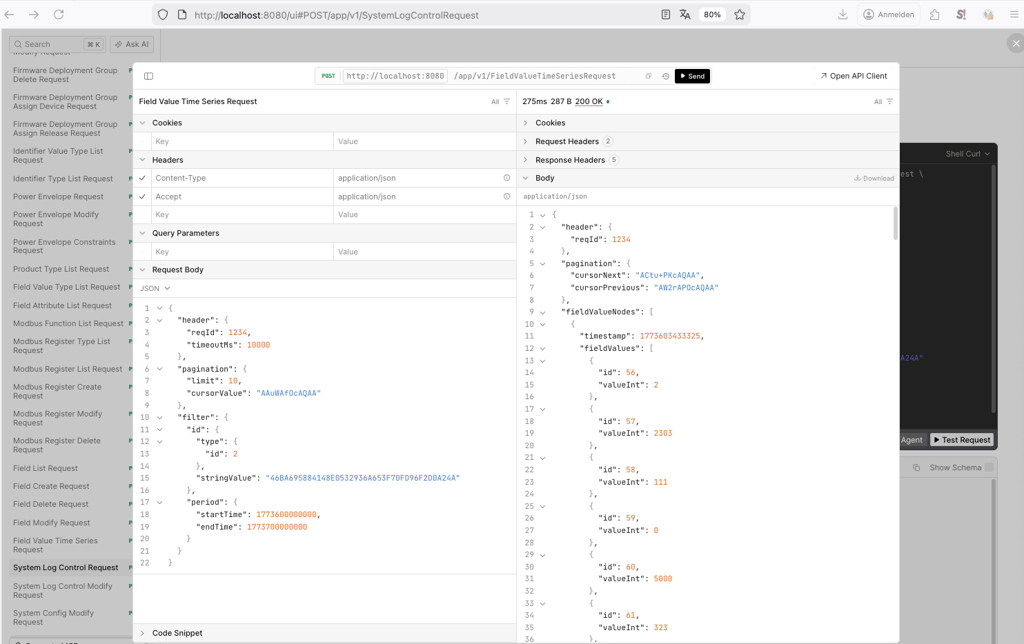

Field Value Time Series Request

Obtain the low-level system field data collected from the device.

1. Select the documentation for Field Value Time Series Request in the left pane of the page.
2. Click Test Request on the right pane where the documentation shows the request.
3. Specify the following:
   • Pagination limit for the number of rows to retrieve.
   • Pagination cursorValue if iterating through large result sets.
   • SKI identifier in the stringValue of the id attribute of the filter in the request.
   • startTime and endTime in the period attribute.

Pagination

The response includes cursorPrevious and cursorNext values when the result set contains more elements than the limit allows. This enables you to iterate backwards and forwards through large result sets.

System Config

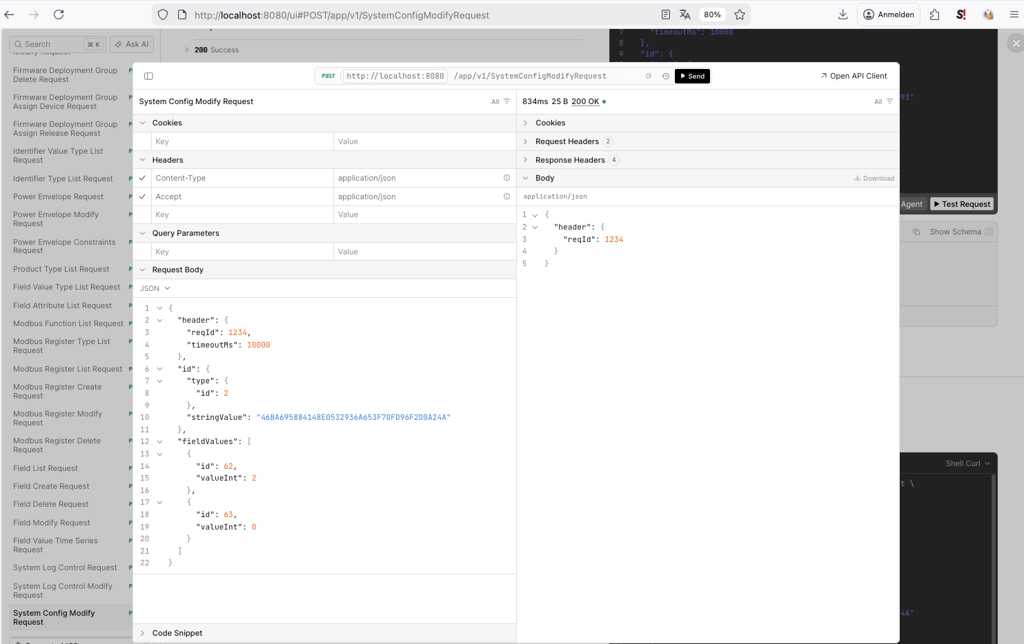

System Config Modify Request

Change the low-level configuration of a device by modifying field values — for example, to charge or discharge a battery.

1. Select the documentation for System Config Modify Request in the left pane of the page.
2. Click Test Request on the right pane where the documentation shows the request.
3. Specify the following:
   • SKI identifier in the stringValue of the id attribute in the request.
   • The field values to set in the fieldValues attribute (see examples below).

Example — Discharge a battery with 400 W

Field ID	Description	Value
62	Set battery operation mode	3 (control)
63	Set grid power	400 (discharge with 400 W)

Example — Set a battery to idle

Field ID	Description	Value
62	Set battery operation mode	2 (idle)
63	Set grid power	0
